poor man's vault

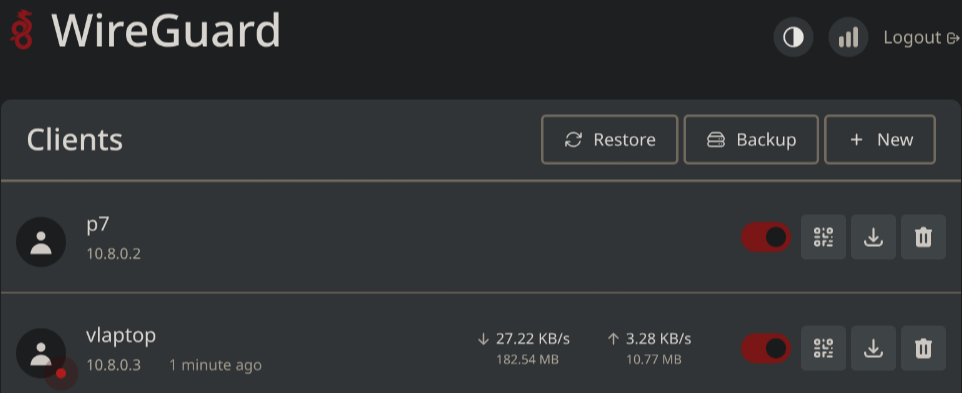

wg-easy webui

context Link to heading

i need of a passwordmanager and backup solution all in one but behind vpn to feel way more ~~secure~~ cool

being able to browse internet while vpn connected is mandatory that’s why i choose full tunnel (with dns)

other designs not coverred here are possible : split tunnel / full exposure (novpn) / etc …

prerequisites Link to heading

vps/cloud instance
A dns registrar resolving *.cloud.domain.tld > vps/instance public ip
i use rocky9 with selinux enabled but any distro should do

firewall Link to heading

firewalld is default on rocky but no need defaults ports

need to open ssh/wireguard and authorize traffic from future wireguard’s clients on 10.8.0.0/24

sudo firewall-cmd --permanent --remove-service=cockpit
sudo firewall-cmd --permanent --remove-service=dhcpv6-client
sudo firewall-cmd --permanent --add-port=MYSSHPORT/tcp
sudo firewall-cmd --permanent --add-port=51820/udp
sudo firewall-cmd --permanent --add-rich-rule='rule family="ipv4" source address="10.8.0.0/24" accept'
sudo firewall-cmd --complete-reload

if you need to use http-01 challenge (default in caddy ) open http port temporarly each time you generate certs

sudo firewall-cmd --permanent --add-service=http
sudo firewall-cmd --complete-reload

after caddy did the job close it back

sudo firewall-cmd --permanent --remove-service=http
sudo firewall-cmd --complete-reload

otherwise use dns-01 challenge no need to open http port

users with no privileges Link to heading

it’s recommended to use a specific user different from ssh connected user

create a user with no sudo,wheel privileges but give him/her a /home

sudo useradd -m podstack
sudo passwd podstack
sudo loginctl enable-linger podstack

then login

su --login podstack

use a specific directory to handle stack and containers dir/files

mkdir -p vault/caddy/{config,data} vault/rustic/{config,certs,data} vault/{logs,vwdata,wireguard}
cd vault

vaultwarden Link to heading

enabling signup is ok for creating fisrt user remeber to disable it later

i’m not configuring smtp for sending emails to users but it’s trivial to do so

compose block

  vaultwarden:
    image: vaultwarden/server:latest
    container_name: vaultwarden
    restart: unless-stopped
    environment:
      DOMAIN: "https://vault.cloud.domain.tld"
      TZ: Europe/Paris
      LOG_LEVEL: error
      EXTENDED_LOGGING: true
      LOG_FILE: "/data/vault_access.log"
      ROCKET_PORT: 8080
      WEBSOCKET_ENABLED: false
      ADMIN_TOKEN: REDACTED
      SIGNUPS_ALLOWED: true
    volumes:
      - ./vdata:/data:rw,Z
      - ./logs:/data/logs:z
    networks:
      securestack:
        ipv4_address: 10.0.0.3
    expose:
      - "8080"

caddy Link to heading

building caddy with dns plugins can help achieve dns-01 using api

here is the build file

~/vault/caddy.build

ARG CADDY_VERSION=latest
FROM caddy:builder AS builder


RUN xcaddy build \
  --with https://github.com/caddy-dns/njalla \
  --with github.com/mholt/caddy-ratelimit

FROM caddy:${CADDY_VERSION}

COPY --from=builder /usr/bin/caddy /usr/bin/caddy

then we’ll call the build in compose but can force rebuild if needed (update or adding plugins)

compose block

  caddy:
    image: caddy_custom:latest
    container_name: caddy
    build:
      context: .
      dockerfile: caddy.build
    restart: unless-stopped
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ./Caddyfile:/etc/caddy/Caddyfile:ro,Z
      - ./caddy/data:/data:Z
      - ./caddy/config:/config:Z
      - ./logs:/srv/data:z
    networks:
      securestack:
        ipv4_address: 10.0.0.4

Caddyfile is quite simple using common headers for all sites and trying to keep logs for one year (optionnal)

reverse proxy and tls handling 3 sites

[https://vault.cloud.domain.tld]

[https://wg.cloud.domain.tld]

[https://rustic.cloud.domain.tld]

logging is not mandatory but useful for debugging/reporting/ids

~/vault/Caddyfile

(header_common) {
    header {
        Strict-Transport-Security "max-age=31536000;"
        X-Content-Type-Options "nosniff"
        X-Frame-Options "DENY"
        Referrer-Policy "no-referrer"
    }
}
vault.cloud.domain.tld {
    reverse_proxy vaultwarden:8080
    log {
        format json
        output file data/vault_access.log {
            roll_local_time
            roll_size     30mb
            roll_keep_for 365d
        }
    }
}
wg.cloud.domain.tld {
    reverse_proxy wg-easy:51821
    log {
        format json
        output file data/wg_access.log {
            roll_local_time
            roll_size     30mb
            roll_keep_for 365d
        }
    }
}
rustic.cloud.domain.tld {
    reverse_proxy rustic-server:8000
    log {
        format json
        output file data/restic_access.log {
            roll_local_time
            roll_size     30mb
            roll_keep_for 365d
        }
    }
}

wg-easy Link to heading

it needs to be privileged because of network rights problem with podman

we nee to expose the udp :51820 only webui being reachable on :51821 only when connected

wg-easy creates its own config file at start in ~/vault/wireguard/wg0.conf

you should not modify directly this file !

if you need several POST_UP and POST_DOWN rules you can use .env file and call variables as commands

  - WG_POST_UP=echo ${POST_UP} > /etc/wireguard/post-up.txt

to automate deployment with ansible

dns for wireguard clients is unbound managed by (optionnal)

compose block

  wg-easy:
    image: wg-easy/wg-easy
    container_name: wg-easy
    privileged: true
    environment:
      - PASSWORD_HASH=REDACTED
      - WG_HOST=readactedip
      - WG_DEFAULT_DNS=10.0.0.6
      - WG_POST_UP=iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE && iptables -A FORWARD -i wg0 -j ACCEPT && iptables -A FORWARD -o wg0 -j ACCEPT
      - WG_POST_DOWN=iptables -t nat -D POSTROUTING -o eth0 -j MASQUERADE && iptables -D FORWARD -i wg0 -j ACCEPT && iptables -D FORWARD -o wg0 -j ACCEPT
      - LANG=en
      - TZ=Europe/Paris
      - UI_TRAFFIC_STATS=true
      - UI_CHART_TYPE=1
    ports:
      - "51820:51820/udp"
      - "127.0.0.1:51821:51821/tcp"
    volumes:
      - ./wireguard:/etc/wireguard:rw,Z
    cap_add:
      - NET_ADMIN
      - NET_RAW
      - SYS_MODULE
    sysctls:
      - net.ipv4.ip_forward=1
      - net.ipv4.conf.all.src_valid_mark=1
      - net.ipv6.conf.all.disable_ipv6=0
      - net.ipv6.conf.all.forwarding=1
      - net.ipv6.conf.default.forwarding=1
    restart: unless-stopped
    networks:
      securestack:
        ipv4_address: 10.0.0.5

dns unbound Link to heading

a very minimalistic distroless unbound

conf uses quad9 and opennic servers

~/vault/unbound/unbound.conf

server:
  verbosity: 4
  log-file: "/opt/unbound/logs/unbound.log"
  log-queries: yes  # Log all queries
  log-replies: yes  # Log all replies
  interface: 0.0.0.0
  access-control: 10.8.0.0/24 allow
  access-control: 10.0.0.0/24 allow
  do-ip4: yes
  do-udp: yes
  do-tcp: yes
  tls-cert-bundle: "/etc/ssl/certs/ca-certificates.crt"

  root-hints: "/opt/unbound/etc/unbound/root.key"
  hide-identity: yes
  hide-version: yes
  use-caps-for-id: yes
  prefetch: yes
  qname-minimisation: yes
  harden-glue: yes
  harden-dnssec-stripped: yes
  cache-min-ttl: 3600
  cache-max-ttl: 86400

forward-zone:
  name: "."
  forward-tls-upstream: yes
  forward-addr: 9.9.9.9@853
  forward-addr: 9.9.9.11@853
  forward-addr: 147.135.40.4@853

rustic-server Link to heading

need to build rustic-server

~/vault/rustic-server.build

FROM alpine AS builder
ARG RUSTIC_SERVER_VERSION
ARG TARGETARCH
RUN if [ "$TARGETARCH" = "amd64" ]; then \
        ASSET="rustic_server-x86_64-unknown-linux-musl.tar.xz";\
    elif [ "$TARGETARCH" = "arm64" ]; then \
        ASSET="rustic_server-aarch64-unknown-linux-musl.tar.xz"; \
    fi; \
    wget https://github.com/rustic-rs/rustic_server/releases/download/${RUSTIC_SERVER_VERSION}/${ASSET} && \
    tar -xf ${ASSET} --strip-components=1 && \
    mkdir /etc_files && \
    touch /etc_files/passwd && \
    touch /etc_files/group

FROM scratch
COPY --from=builder /rustic-server /rustic-server
COPY --from=builder /etc_files/ /etc/
EXPOSE 8000
ENTRYPOINT ["/rustic-server", "serve"]

on host vps you’ll need httpd-tools

dnf install httpd-tools

create htpasswd file

htpasswd -B -c ~/vault/rustic/data/.htpasswd username

create acl.toml file to define permissions of users and groups on repositories

~/vault/restic/config/acl.toml

[default]
luigi = "Read"
brian = "Modify"

[luigi]
alice = "Modify"
bob = "Append"

compose part

  rustic-server:
    image: rustic-server:latest
    container_name: rustic-server
    build:
      context: .
      dockerfile: rustic-server.build
      args:
        RUSTIC_SERVER_VERSION: "v0.4.0"
        TARGETARCH: "amd64"
    ports:
      - "8000:8000"
    volumes:
      - ./rustic/config:/etc/rustic-server/config:Z
      - ./rustic/certs:/etc/rustic-server/certs:Z
      - ./rustic/data:/var/lib/rustic-server/data:Z
      - ./logs:/var/log/:z
    environment:
      - RUSTIC_SERVER_LISTEN=10.0.0.7:8000
      - RUSTIC_SERVER_DATA_DIR=/var/lib/rustic-server/data
      - RUSTIC_SERVER_QUOTA=0   # 0 means no quota
      - RUSTIC_SERVER_VERBOSE=true
      - RUSTIC_SERVER_DISABLE_AUTH=false
      - RUSTIC_SERVER_HTPASSWD_FILE=/var/lib/rustic-server/data/.htpasswd
      - RUSTIC_SERVER_PRIVATE_REPOS=true
      - RUSTIC_SERVER_APPEND_ONLY=true
      - RUSTIC_SERVER_ACL_PATH=/etc/rustic-server/config/acl.toml
      - RUSTIC_SERVER_LOG_FILE=/var/log/rustic-server.log
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "3"
    deploy:
      resources:
        limits:
          memory: 512M
    restart: unless-stopped
    networks:
      securestack:
        ipv4_address: 10.0.0.7

compose file Link to heading

to be docker compatible take off z Z

~/vault/podman-compose.yaml

services:
  vaultwarden:
    image: vaultwarden/server:latest
    container_name: vaultwarden
    restart: unless-stopped
    environment:
      DOMAIN: "https://vault.cloud.domain.tld"
      TZ: Europe/Paris
      LOG_LEVEL: error
      EXTENDED_LOGGING: true
      LOG_FILE: "/data/vault_access.log"
      ROCKET_PORT: 8080
      WEBSOCKET_ENABLED: false
      ADMIN_TOKEN: REDACTED
      SIGNUPS_ALLOWED: true
    volumes:
      - ./vdata:/data:rw,Z
      - ./logs:/data/logs:z
    networks:
      securestack:
        ipv4_address: 10.0.0.3
    expose:
      - "8080"

  caddy:
    image: caddy_custom:latest
    container_name: caddy
    build:
      context: .
      dockerfile: caddy.build
    restart: unless-stopped
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ./Caddyfile:/etc/caddy/Caddyfile:ro,Z
      - ./caddy/data:/data:Z
      - ./caddy/config:/config:Z
      - ./logs:/srv/data:z
    networks:
      securestack:
        ipv4_address: 10.0.0.4

  wg-easy:
    image: wg-easy/wg-easy
    container_name: wg-easy
    privileged: true
    environment:
      - PASSWORD_HASH=REDACTED
      - WG_HOST=REDACTED_IP
      - WG_DEFAULT_DNS=10.0.0.6
      - WG_POST_UP=iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE && iptables -A FORWARD -i wg0 -j ACCEPT && iptables -A FORWARD -o wg0 -j ACCEPT
      - WG_POST_DOWN=iptables -t nat -D POSTROUTING -o eth0 -j MASQUERADE && iptables -D FORWARD -i wg0 -j ACCEPT && iptables -D FORWARD -o wg0 -j ACCEPT
      - LANG=en
      - TZ=Europe/Paris
      - UI_TRAFFIC_STATS=true
      - UI_CHART_TYPE=1
    ports:
      - "51820:51820/udp"
      - "127.0.0.1:51821:51821/tcp"
    volumes:
      - ./wireguard:/etc/wireguard:rw,Z
    cap_add:
      - NET_ADMIN
      - NET_RAW
      - SYS_MODULE
    sysctls:
      - net.ipv4.ip_forward=1
      - net.ipv4.conf.all.src_valid_mark=1
      - net.ipv6.conf.all.disable_ipv6=0
      - net.ipv6.conf.all.forwarding=1
      - net.ipv6.conf.default.forwarding=1
    restart: unless-stopped
    networks:
      securestack:
        ipv4_address: 10.0.0.5

  unbound:
    image: klutchell/unbound
    container_name: unbound
    volumes:
      - ./unbound/unbound.conf:/opt/unbound/etc/unbound/unbound.conf:ro,Z
      - ./unbound/root.key:/opt/unbound/etc/unbound/root.key:rw,Z
      - ./logs:/opt/unbound/logs:z
    expose:
      - "53"
      - "853"
    restart: unless-stopped
    networks:
      securestack:
        ipv4_address: 10.0.0.6

  rustic-server:
    image: rustic-server:latest
    container_name: rustic-server
    build:
      context: .
      dockerfile: rustic-server.build
      args:
        RUSTIC_SERVER_VERSION: "v0.4.0"
        TARGETARCH: "amd64"
    ports:
      - "8000:8000"
    volumes:
      - ./rustic/config:/etc/rustic-server/config:Z
      - ./rustic/certs:/etc/rustic-server/certs:Z
      - ./rustic/data:/var/lib/rustic-server/data:Z
      - ./logs:/var/log/:z
    environment:
      - RUSTIC_SERVER_LISTEN=10.0.0.7:8000
      - RUSTIC_SERVER_DATA_DIR=/var/lib/rustic-server/data
      - RUSTIC_SERVER_QUOTA=0   # 0 means no quota
      - RUSTIC_SERVER_VERBOSE=true
      - RUSTIC_SERVER_DISABLE_AUTH=false
      - RUSTIC_SERVER_HTPASSWD_FILE=/var/lib/rustic-server/data/.htpasswd
      - RUSTIC_SERVER_PRIVATE_REPOS=true
      - RUSTIC_SERVER_APPEND_ONLY=true
      - RUSTIC_SERVER_ACL_PATH=/etc/rustic-server/config/acl.toml
      - RUSTIC_SERVER_LOG_FILE=/var/log/rustic-server.log
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "3"
    deploy:
      resources:
        limits:
          memory: 512M
    restart: unless-stopped
    networks:
      securestack:
        ipv4_address: 10.0.0.7

networks:
  securestack:
    name: "securestack"
    driver: bridge
    ipam:
      config:
        - subnet: 10.0.0.0/24

starting stack

podman-compose up -d

ssh failover Link to heading

in case something goes wrong with wireguard access via ssh (port forwarding) is easy

enable AllowTcpForwarding in sshd_config

sudo sed -i '/^#*AllowTcpForwarding/ s/^#*AllowTcpForwarding.*/AllowTcpForwarding yes/; t; $ a AllowTcpForwarding yes' /etc/ssh/sshd_config

restart sshd

sudo systemctl restart sshd

on your client modify /etc/hosts with 127.0.0.1 vault.cloud.domain.tld

sudo sed -i 's/^127\.0\.0\.1 .*/127.0.0.1 vault.cloud.domain.tld/' /etc/hosts

to reach vaultwarden

ssh -L 8080:127.0.0.1:443 user@vpsip

https://vault.cloud.domain.tld

bitwarden client Link to heading

gnu/linux clients tested

cli 2025.5.0
bitwarden official (flatpak) 2025.5.1
chrome extension 2025.5.1

install bw cli

wget -c https://github.com/bitwarden/clients/releases/download/cli-v2025.5.0/bw-linux-2025.5.0.zip -P /tmp
cd /tmp && unzip bw-linux-2025.5.0.zip
sudo cp bw /usr/local/bin/

set it up

bw config server https://vault.cloud.domain.tld
bw login

export your temporary session token to be able to do operations without password

import firefox passwords

in firefox go to about:logins then export your logins as .csv

bw import firefoxcsv passwords.csv

restic client Link to heading

on your laptop or any client

cargo install rustic
mkdir -p ~/config/rustic

~/.config/rustic/rustic.toml

[repository]
repository = "rest:https://rustic.cloud.domain.tld/"
password = "test"

troubleshooting Link to heading

few commands to troubleshoot podman

podman ps
podman network ls
podman network inspect securestack
podman logs -f container1

invoke a shell in container

podman exec -it vaultwarden /bin/sh

since pasta version and podman version i got this error

[caddy] | Error: unable to start container 5c1ff1aa3e1c761b838b235709a454d43a7352c277e5759839d0dd1cf5056ec3: setting up Pasta: pasta failed with exit code 1:
[caddy] | Couldn't open PID file /tmp/poduser-runtime/containers/networks/rootless-netns/rootless-netns-conn.pid: Permission denied
[caddy] |

because of selinux

sudo ausearch -m avc -ts recent

time->Thu Jun 19 20:32:29 2025
type=AVC msg=audit(1750357949.492:579): avc:  denied  { add_name } for  pid=3278 comm="pasta.avx2" name="rootless-netns-conn.pid" scontext=unconfined_u:unconfined_r:pasta_t:s0-s0:c0.c1023 tcontext=unconfined_u:object_r:container_var_run_t:s0 tclass=dir permissive=0
----
time->Thu Jun 19 20:33:22 2025
type=AVC msg=audit(1750358002.688:597): avc:  denied  { create } for  pid=3405 comm="pasta.avx2" name="rootless-netns-conn.pid" scontext=unconfined_u:unconfined_r:pasta_t:s0-s0:c0.c1023 tcontext=unconfined_u:object_r:container_var_run_t:s0 tclass=file permissive=0
----
time->Thu Jun 19 20:33:28 2025
type=AVC msg=audit(1750358008.406:602): avc:  denied  { create } for  pid=3494 comm="pasta.avx2" name="rootless-netns-conn.pid" scontext=unconfined_u:unconfined_r:pasta_t:s0-s0:c0.c1023 tcontext=unconfined_u:object_r:container_var_run_t:s0 tclass=file permissive=0
----
time->Thu Jun 19 20:34:35 2025
type=AVC msg=audit(1750358075.265:621): avc:  denied  { write open } for  pid=3606 comm="pasta.avx2" path="/tmp/poduser-runtime/containers/networks/rootless-netns/rootless-netns-conn.pid" dev="tmpfs" ino=234 scontext=unconfined_u:unconfined_r:pasta_t:s0-s0:c0.c1023 tcontext=unconfined_u:object_r:container_var_run_t:s0 tclass=file permissive=0
----
time->Thu Jun 19 20:34:42 2025
type=AVC msg=audit(1750358082.616:665): avc:  denied  { write } for  pid=3715 comm="pasta.avx2" name="rootless-netns-conn.pid" dev="tmpfs" ino=234 scontext=unconfined_u:unconfined_r:pasta_t:s0-s0:c0.c1023 tcontext=unconfined_u:object_r:container_var_run_t:s0 tclass=file permissive=0

i needed to adapt selinux

sudo ausearch -c 'pasta.avx2' --raw | sudo audit2allow -M mypasta
sudo semodule -i mypasta.pp
sudo chcon -R -t container_var_run_t /tmp/poduser-runtime
